Fixion F3X

$1,500.00

Includes:

  • F3X Tying Machine (V25 or H35)
  • One Alpha Lite Battery
  • One battery charger
  • One 80M Dispenser
  • One carrying case with accessories
  • Battery life up to 13,000 ties
  • (One day’s work)
Clear

Description

Lightweight, ergonomic electric tying tools

  • Perfectly balanced and comfortable to use: F3X – V25: 845 g (1.86 lbs) and H35: 850 g (1.87 lbs) with on-board battery
  • Electronic trigger and comfort grip for long working days
  • Designed to reduce musculoskeletal disorders, by being perfectly balanced in the hand
  • Optimum freedom of movement with its on-board spool

Outstanding tying productivity

  • Up to 120 ties per minute and up to 13,000 ties per battery
  • Optimized spool replacement to maintain high work rate
  • Up to 1,500 ties with the 200 m (656 ft) spool and up to 600 ties with the 80 m (262 ft) spool
  • Ideal for long tying-in campaigns

Precise tying-in

  • 8 twist levels to suit different types of plantation, varieties and growth stages
  • Adjustable tightening to protect the bark of young branches or growing stems (from 1.5 to 12 turns)
  • Reliable, injury-free support of the plant

Connected electric tying tools

You can configure and control your tying tools directly from the PELLENC CONNECT LITE app:

  • Tie parameter settings
  • Display performance and monitor the tool
  • Maintenance warning
  • Simplified equipment management

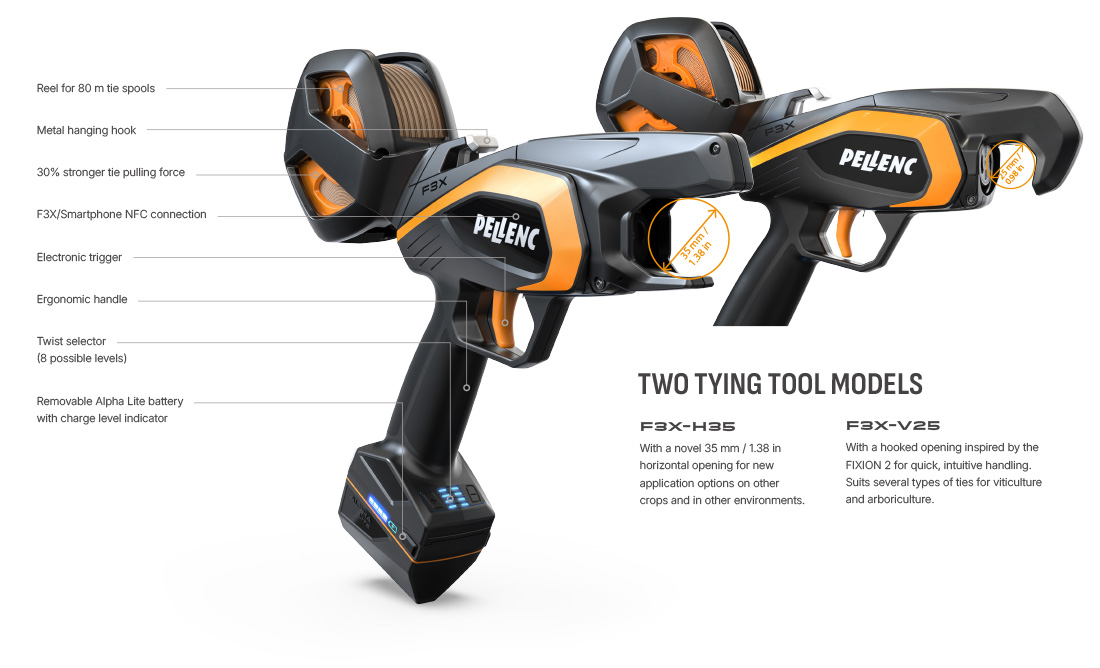

F3X-V25

The F3X-V25 electric tying tool, with its hooked opening inspired by the FIXION 2 tying tool, is designed for professionals seeking a quick, lightweight and handy tying tool. With its intuitive handling and compact size, it can be used for very precise close tying-in with total freedom of movement, whether in viticulture, arboriculture or nursery work.

F3X-H35

The F3X-H35 electric tying tool features a horizontal tying opening and a 35 mm (1 3/8 in) tying diameter, uniquely versatile for tying bulky branches, cross-ties, young vines, irrigation systems or trellises. Suitable for all crops, it guarantees high productivity and is perfectly suited to all environments, whether in vineyards, arboriculture, nurseries or green spaces.

On-board power with ALPHA LITE batteries

Ultra-compact, the ALPHA LITE battery performs up to 13,000 ties per charge. Light as a feather, weighing just 210g (7.4 oz), and recharging in just 1hr30min, make it easy to manage the battery life of your tying tool, ensuring a full day’s work out on one battery.

An ideal range of ties

Four types of tie are available, each suited to crop requirements, climatic and environmental conditions, the weight of the plant tied-in and the desired lifespan.

Two types of reels:

  • An 80 m (262 ft) on-board reel for greater freedom of movement; the tool’s on-board spools hold up to 600 ties per spool

Two types of reels:

  • A 200 m (656 ft) belt reel to maximise productivity; the belt-mounted spool holds up to 1,500 ties per spool

Technical characteristics

• Standard equipment
F3X – V25 F3X – H35
Tying diameter 25 mm (1in) 35 mm (1 3/8in)
Weight with battery 845 g (1.86 lbs) 850 g (1.87 lbs)
Weight with battery + reel + 80 m spool 1,095 g (2.4 lbs) 1,100 g (2.4 lbs)
Battery life – Ties/charging cycle 13,000 13,000
Tying rate – ties per min 120 120
Number of ties per 200 m (656 ft) spool 1,500 1,200
Number of ties per 80 m (262 ft) spool 600 480
Tension levels 8 Twist modes (1.5 to 12 turns) 8 Twist modes (1.5 to 12 turns)
Battery compatibility ALPHA LITE ALPHA LITE
Connected tying tool Yes – PELLENC CONNECT LITE Yes – PELLENC CONNECT LITE
Made in France Yes Yes
• Standard equipment
ALPHA LITE BATTERY
Compatibility Pruning shears C3XF3X – V25 / F3X – H35 tying tool
Weight 210 g (0.46 lbs)
Capacity 30.2 Wh
Rated voltage 10.8 V
Average battery life Pruning shears, 2 to 4 hours – 3,000 to 4,000 cuts
Tying tool, 1-day – 13,000 ties
Charging time 0 > 100% 1.5 hours / battery (ALPHA LITE charger)
Battery winterizing safety Yes

Full product information

Additional information

Model

V25 (Vertical), H35 (Horizontal)
