Optimum 2

2

Efficiency combined with comfort

AT YOUR FINGERTIPS

10.4-inch capacitive touchscreen
with 100% of the machine’s functions

Night Work

Up to 16 LED lights

OPTIMAL COMFORT GRAMMER SEAT

Tall backrest, heated seat, and automatic detection of an occupant by weight

15 OPERATOR-ASSISTANCE FEATURES

Including automatic positional
adjustment of the harvesting head

PANORAMIC VIEW

Totally unobstructed view over the entrance to the row

IMPROVED QUALITY

New low-frequency shaking system

UNRIVALED WORKING COMFORT

Storage spaces, refrigerated compartment, USB sockets

ALL-ROUND SEALING AND PROTECTION OF THE VINES

Including automatic positional adjustment of the harvesting head

NEW FUEL-EFFICIENT TRANSMISSION SYSTEMS

1,800 rpm at 15 mph

COMBINED MULTIFUNCTION

Work 2 full rows simultaneously with 2 different tools

COMFORT

SPACIOUS CAB

  • Air conditioned cooling and heating.
  • Numerous storage spaces.
  • Bottle holder.
  • Refrigerated compartment.
  • Bluetooth radio.

USER-FRIENDLY

  • GRAMMER pneumatic seat with automatic detection of an occupant by weight. This comfortable seat is also heated and has a front and rear longitudinal suspension.
  • Easy access: electrically opened and closed ladder.
  • Curved front windscreen: 320° panoramic field of vision.
  • Sun visor.
  • Cab mounted on silent blocks that absorb vibrations.
  • Armrest with integrated EASY DRIVE joystick.
  • Multiple settings to adapt to the body shape of each operator: armrest, electric rear-view mirrors, EASY TOUCH console, steering column.

We’ve got a Pellenc 890, this is our third season running that harvester. We’ve been using machine harvesting and machine harvested fruit for probably 25-30 years now and when they came out with the onboard sorting system, the Selectiv’ Process…that’s what really pushed us towards Pellenc. The fruit that’s coming out of that machine is very very clean there’s hardly any leaves, very few stems, and it can go right in a tank without any further processing once it gets to the winery. For us at Silver Oak that’s really important. One of the factors that caused us to buy a machine to go to machine harvesting is the ability to be able to pick when we want to pick. For us, a day or two later than we want to really makes a huge difference in fruit quality. So being able to pick the amount we want, the time we want and keep on that schedule is really important. We’ve been very satisfied with the quality of the equipment. It’s in three seasons that we’ve been running it, we’ve had just a few minor issues that got straightened out quickly. Can’t say enough about the service department, they do a great job. They’re available 24/7 and we’ve used them a couple of times at all hours of the night. We chose this machine because we think it’s the best in the industry right now.

SAFETY

SECURE CAB

  • ROPS (Roll Over Protection Structure) cab.
  • Seat with a safety belt and presence detector.
  • Category 4 pressurized and filtered cab.
  • A presence sensor in the seat acts as an emergency stop for the tools as soon as the driver leaves the seat.
  • 1 interior rear-view mirror and 2 split wide angle electric rear-view mirrors, one of which can be folded in.
  • Other safety equipment: Window-breaker hammer and fire extinguisher.

FIVE EMERGENCY STOP BUTTONS

  • 1 shutdown button for the tool/harvesting head next to the EASY DRIVE joystick.
  • 1 general emergency stop on the steering column: complete shutdown of the machine (including the engine).
  • 3 emergency stops on the harvesting head: above each lower suction fan + 1 on the remote control of the washing platform.
  • One easily-accessible battery cut-off switch.

AUTOMATIC PARKING BRAKE

  • Automatically activated and deactivated when the machine stops and restarts.

VISIBILITY DAY AND NIGHT

  • 14 or 16 lights as standard, including 2 steering lights, 100% LED.
  • 3 high-definition color cameras with night-vision and an independent monitor (up to 4 cameras can be displayed).
  • The right rear corner is equipped with 3 specific lights and a high definition camera for safe and comfortable maneuvering.

SLOPE AND TILT VISUALIZATION

  • The slope percentage and the carrier’s tilt level are displayed at all times on the EASY TOUCH console.
  • The carrier tilt angle can be corrected on a slope of up to 28% from the joystick.

The new OPTIMUM harvester has won me over. The comfort of the cab is impressive, the EASY TOUCH touch console and the multi-function joystick control make driving intuitive and enjoyable. The manoeuvrability is impressive in the headland. I easily turn at the end of the rows, even on my most uneven and narrow plots. The quality of the harvest is excellent, the Flexible Sorter Conveyor works in perfect harmony with the Selectiv’ Process On Board 2. Sorting the harvest starts on the conveyor, which allows me to work faster while maintaining unmatched crop quality: 99.82 % cleanliness in the bin.

SUITABLE FOR ALL OPERATORS

EASY DRIVE: STEADY ADVANCE JOYSTICK

  • 18-button joystick on a fixed pivot: no arm movement required from the operator, who can control all functions by pressing or holding the buttons.
  • 100% of functions can be controlled from the joystick.
  • Responsive in the field and suitable for all operators.
  • Instant reset and change of direction in a single movement.
  • Backlit buttons.

EASY TOUCH: TOUCHSCREEN CONTROL CONSOLE

  • Control all PELLENC tools from the cab. Each function has its own intuitive pictogram. No text on the screen pages: simple to use.
  • EASY TOUCH also incorporates the guide lights for the rows, speed regulator, and hectare counter.
  • With EASY SMART, adjust all the harvesting settings directly.

OPERATOR ASSISTANCE

  • ACTIV’ head: automatic centering in the row with stop indicators in the cab.
  • Ground detection with automatic raising.
  • Programmable height limit stops: work, headland, and road position.
  • Automatic parking brake as soon as the machine is stopped.
  • Automatic recognition of PELLENC tools as soon as they are coupled.
  • Instant display of tilt and slope percentage.

EASY TO HANDLE

COMPACT CARRIER

  • PELLENC carriers have a short wheelbase, ensuring an optimal turning circle.
  • A low center of gravity for working on slopes and at an angle in complete safety.
  • Easy driving on roads and paths.

TPI 2 CONTINUOUS ALL-WHEEL-DRIVE AS STANDARD ON ALL OPTIMUM CARRIERS

  • TPI 2 continuous all-wheel-drive is a system that prevents slipping
  • When activated, TPI 2 functions regardless of speed and/or turning angle (e.g. at the headland).
  • The wheels receive the same oil flow rate at all times, even in the event of a loss of grip.
  • The TPI 2 system stretches the limits of grip.

EASY TURN STEERING SYSTEM

  • Record ease of handling at headlands: When turning, the rear inner wheel reverses to shorten the turning circle and reduce the space required to maneuver.
  • Work row by row without additional maneuvering.
  • On steep slopes or at a severe angle, the headland brake locks the inner rear wheel to maintain optimal grip.

SHORT WHEELBASE: 9 FT*
+
EASYTURN 95°
TURNING ANGLE

Record ease of handling at the headland
Work row by row without additional maneuvering
The inner rear wheel reverses to shorten the turning circle

=

TURNING CIRCLE: 10.8 FT*
> TIME SAVING

*(L10 carrier with harvesting head)

COST-SAVING

OPTIMIZES EVERY DROP OF FUEL

  • The EASY POWER system automatically adapts the engine speed to the needs of the tools and the carrier. This intelligent system ensures minimum fuel consumption both at work and on the road.
  • ECO mode changes the engine power management. It revs up less abruptly and less often. Eco mode lets you save up to 10% on fuel.
  • The operator can manually increase the engine speed from the EASY TOUCH console for engine preheating or to facilitate specific tasks.
  • The supervisor on EASY TOUCH lets you evaluate the actual fuel savings.
  • The speed limiter regulator stabilizes fuel consumption while working.

ECO-FRIENDLY

NEW PERKINS STAGE 5 ENGINE: 7 TIMES LESS POLLUTION THAN A TIER IV INTERIM ENGINE

  • The Perkins engine is equipped with an exhaust fumes treatment system to comply with the latest emission standards.

QUICK AND EASY MAINTENANCE

WITHIN EASY REACH AND NO TOOLS REQUIRED

  • Maintenance reminders are shown on your EASY TOUCH screen, with an hour counter so you can plan the service.
  • The maintenance and greasing points and access to the various filters (hydraulic system and motor) are all within easy reach.
  • Reduced greasing intervals: every 20 hours for the harvesting head (without food-compatible grease) and every 200 hours for the carrier.
  • All the components of the flexible sorting conveyor are replaceable and mounted on interchangeable skids.
  • Continuous self-diagnostics with error messages displayed on the EASY TOUCH console.

MULTIFUNCTION

OPTIMUM combined multitasking

The only carrier on the market capable of working two full rows with two different tools simultaneously

The growing concerns of vine growers about the profitability of their farms, particularly in light of restrictions on herbicides, climate change, new requirements regarding pesticides, and expanding acreage are what led us to develop COMBINED MULTITASKING.
The PELLENC multifunction carrier is equipped with mechanical, electrical, and hydraulic coupling systems for the quick fitting of one tool at the front of the multifunction arm and another at the rear, so that two full rows can be worked at once.
Today, more than 80% of our carriers work in multifunction mode.

Features

There is no equivalent on the market. This is the only carrier capable of working 2 full rows with 2 different tools. That ability to use a combination of tools simultaneously required our engineers to develop the carrier’s hydraulic, electrical, and electronic capabilities.
The machine’s intelligence lies in its control console and touchscreen panel, which enable the operator to control two tools simultaneously using a wide range of automated systems. The interface is designed to make the operator’s job easier and safe.

Some examples:

Multifunction Front Arm and Rear Tool Carrier:

  • Multifunction front arm: 1 full row trimmer
    + 2 x 1/2 row trimmers (= 2 full rows)
  • Twin Row 3-point: Tool holder equipped with 2 cultivators
    (with or without inter-vine probes).

2-Row Trimmer:

  • Automatic width adjustment of the cutter bars from the cab (information on the plantation width and the canopy).
  • Automatic folding and unfolding of the exterior cutter bars.
  • Automated height adjustment and extension of the multifunction arm.
  • Automatic width adjustment of the cutter bars from the cab (information on the plantation width and the canopy).
  • These automated systems are linked to the start-up of the cutter bars and are carried out in hidden time while the driver turns around at the headland.

TWIN Row 3-Point Attachment:

  • AUTOMATIC centering system between the vines thanks to the 2 probes located in front of the tools (width adjustment to adapt to different plantation widths).
  • In-row 3-Points are re-centered behind the carrier automatically to move on to the next row with perfectly aligned tools.
  • The height of each tool is also managed thanks to the ground probes. This means the whole assembly can work at a tilt.
  • The hydraulics of the tool holder deliver power to the cylinder. The cylinder raises the rear tool when the arm is raised: this significantly reduces the need for maneuvering room at the headland.

Easy controls

  • Two-click control. The start-up of the front tool is managed by the first click and the start-up of the rear tool by the second click. This lets the operator take account of the carrier’s progress in the row.
  • Each time the tools are switched on or off, the automated systems on each tool save time at the headlands and free the operator from all the constraints associated with each tool.

The advantages of combined multifunction

  • Automated systems that make the operator’s job easier
  • Coupling and uncoupling at an accessible height + hydraulic coupling (less time consuming)
  • Faster amortization of machines
  • Fuel saving
  • Labor saving
  • Time saving in the field
  • Jobs carried out when the moment is right
  • Farm productivity is two to four times higher than with an in-the-row tractor

HARVEST

An unmatched harvest

ACTIV’ HEAD + NEW SHAKING SYSTEM

ACTIV’ HEAD AUTOMATIC ROW-TRACKING SENSOR

  • Two position sensors automatically align the harvesting head in the row.
  • The ACTIV’ system optimizes the efficiency of shaking, without damaging the trellising and plants.
  • The movement of the harvesting head is proportional to the speed.
  • Improves working comfort.
  • Increases the life of wear parts.

Revolutionary Harvesting System

FLEXIBLE SORTING CONVEYOR

  • The innovative design of the flexible sorting conveyor starts the sorting process from the moment the grape falls.
  • Only 30% of the harvest passes under the suction fans: up to 5% more harvest.
  • Semi-automatic conveyor tensioning makes maintenance easier and ensures the correct tension.
  • The system can be fully dismantled, to reduce maintenance costs.
  • Quick cleaning.
  • No need to disassemble the conveyors at the end of the season.

L-shaped design of the conveyor

  • The conveyor is open at the back to remove foreign material and avoid jamming.
  • Its protective steel housing means it can work at ground level.
  • The conveyor is made of stainless steel to make maintenance and washing easier.

UNMATCHED HARVEST QUALITY

SORTER

Sorter

  • The sorting system separates the juice from the leaves.
  • The juices and berries pass through the slotted conveyor belt.
  • The suction fan removes only the leaves remaining on the conveyor.
  • No loss of juice.

SELECTIV’ PROCESS

DESTEMMER+ SORTING TABLE

  • Destem and sort your harvest in the field to go directly into the tank.
  • Tried and tested by over 2,000 users.

High-frequency linear destemmer

  • Destemming without loss, even with difficult grape varieties, while protecting the berries. The feeding fingers remove foreign bodies.

Roller sorting table and variable screen

  •  The solid notched feeding rollers route leaf stems to the sorting rollers.
  • The sorting rollers allow the sorted berries to pass through and remove the leaf stems and other waste from the sorting table.
  • The variable screen sorting table adjusts quickly to all grape varieties and all working conditions.
  • 100% of leaves are removed as well as 95% of leaf stems.

BIN CAPACITY

  • Total capacity of up to 951 gallons.
  • Bin emptying height of up to 10ft 7in depending on the model.
  • Both bins can be emptied at once.
  • Bin level displayed on the “Easy Touch” screen.

INNOVATION

NEW SHAPE OF CATCHER TRAYS

  • The new material and profile improve sealing, transfer of berries to the conveyors, and resistance to wear.
  • Each catcher tray is equipped with an “anti-rebound” stop to prevent sudden impacts.
  • The joint is built into the catcher tray to facilitate assembly.
  • The sealing length of 8.2 to 9.4 ft ensures optimal working speed.

LIGHTING

  • Up to 16 LED working lights for safety.
  • One automatically activated reversing light.
  • Lighting of the sorting tables in the SELECTIV’ PROCESS version.

EASY WASHING AND MAINTENANCE

  • The daily greasing of the harvesting head is centralized at 8 points.
  • Washing takes 20-45 minutes, depending on the model, and can be done easily and safely from a wide platform.
  • Water column to facilitate washing.
  • The remote controls enable the retraction of the suction fans, sorting tables, and destemmers for quick and efficient cleaning.

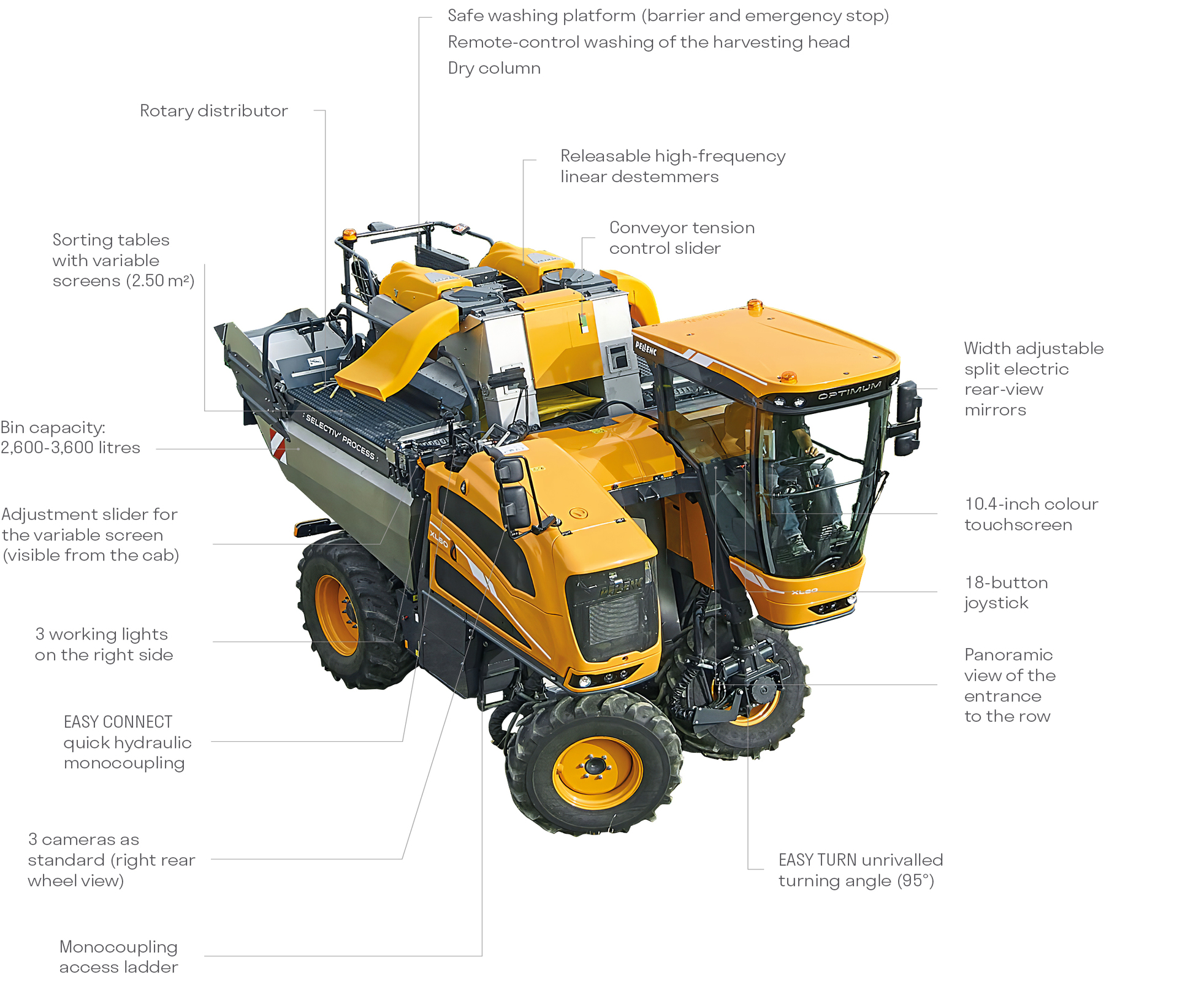

OVERVIEW

TECHNICAL SPECS
